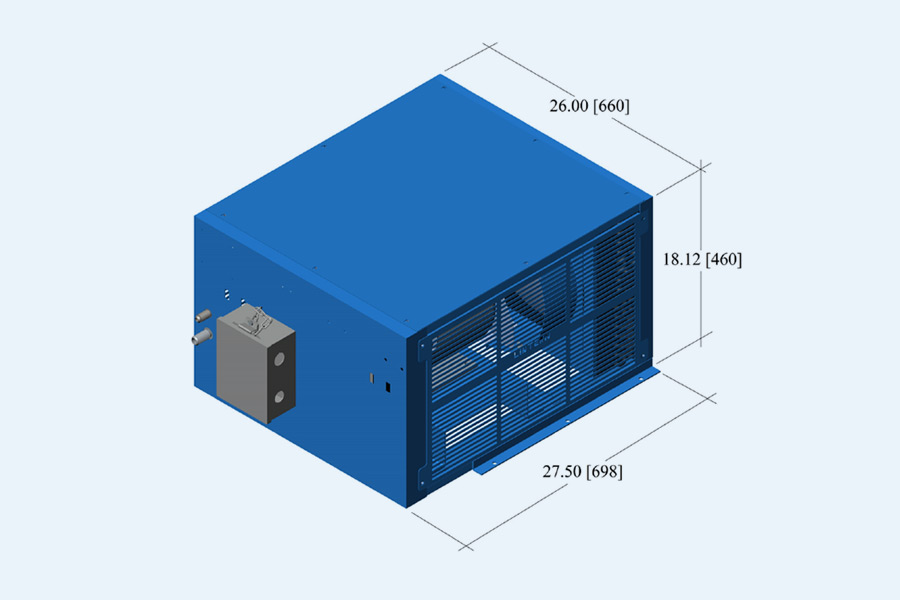

213 Condenser

213 condenser

A Solution for Split and All-in-One Applications

Whether you’re looking for a condenser for a split cooling application, or need a condenser solution only, the Lintern Corporation 213 condenser provides the cooling capacity you need to protect your people and equipment. Designed specifically for hot, dirty, and corrosive environments, the 213 condenser is ideal wherever a challenging environment requires an effective cooling solution either as a split system paired with an appropriate evaporator or as part of our self-contained air conditioning units.

Explore the specifications and flexible mounting options for our 213 condenser unit below. If you’d like to learn more about the features and applications of this unit and discuss its available options, please contact our sales team today.

CAPACITY

13,000 BTUH (3.8 KW)

OPERATING RANGE

70°F-140°F (21°C-60°C)

FRAME CONSTRUCTION

Welded tube frame, epoxy powder coated
Optional embossed 304 stainless steel

CONDENSER COIL

Aluminum fin, copper tube 8 fins per inch (3.2mm)
Heavy gauge .0095” (.241mm) hardened fin stock
Flexible epoxy coated

REFRIGERANT

R-134a
R-513A

COMPRESSOR

T/CCI reciprocating, open drive

COMPRESSOR MOTOR

4 HP (3kW) totally enclosed VAC
3 HP (2.2kW) totally enclosed VAC

CONDENSER FAN

14” (355mm) 1800 CFM/3058 M3H fiberglass reinforced nylon fan with aluminum hub
Mounted on compressor motor

VOLTAGE

208-230/460/575/3/60 Hz VAC
380-415/500/3/50 Hz VAC
240 VDC

CONTROLS

Dual pressure switch
Crankcase heater
Receiver tank for system pump down
Pressure relief valve

WEIGHT

275 lb/125 kg

MOUNTING

Exterior
*See mounting page for configurations
